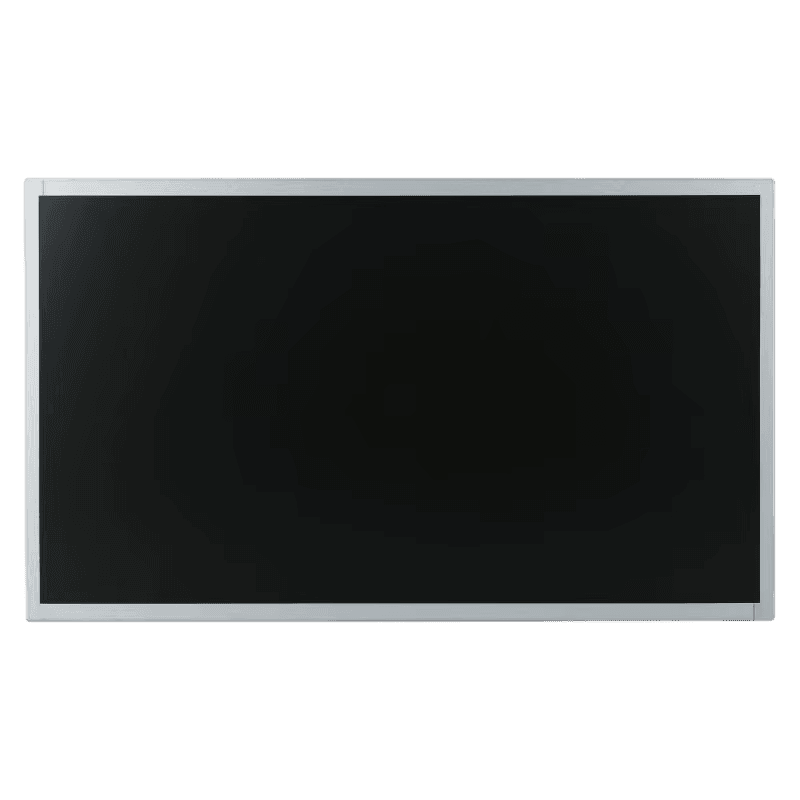

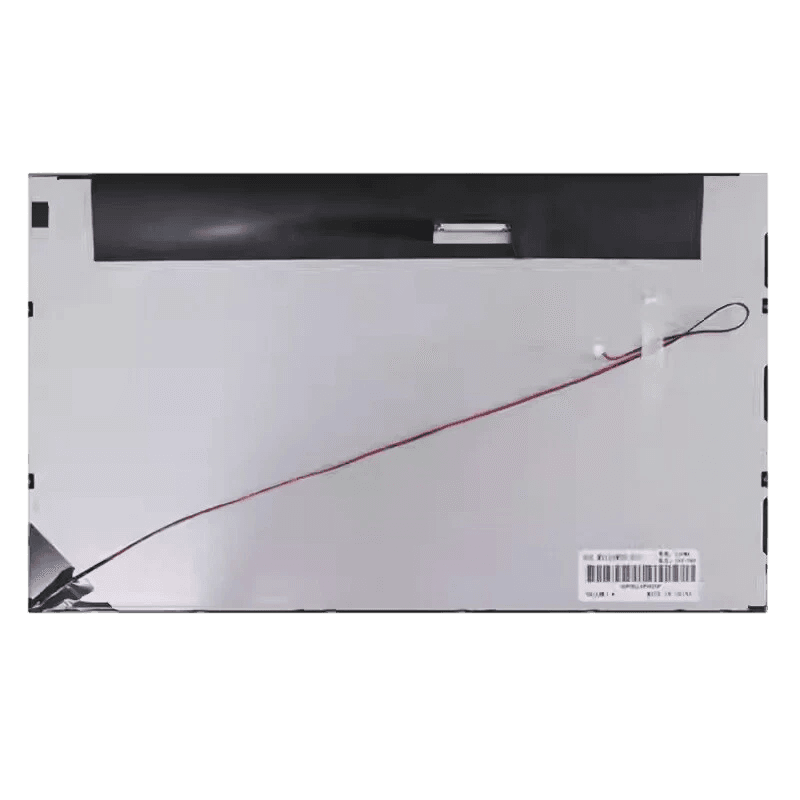

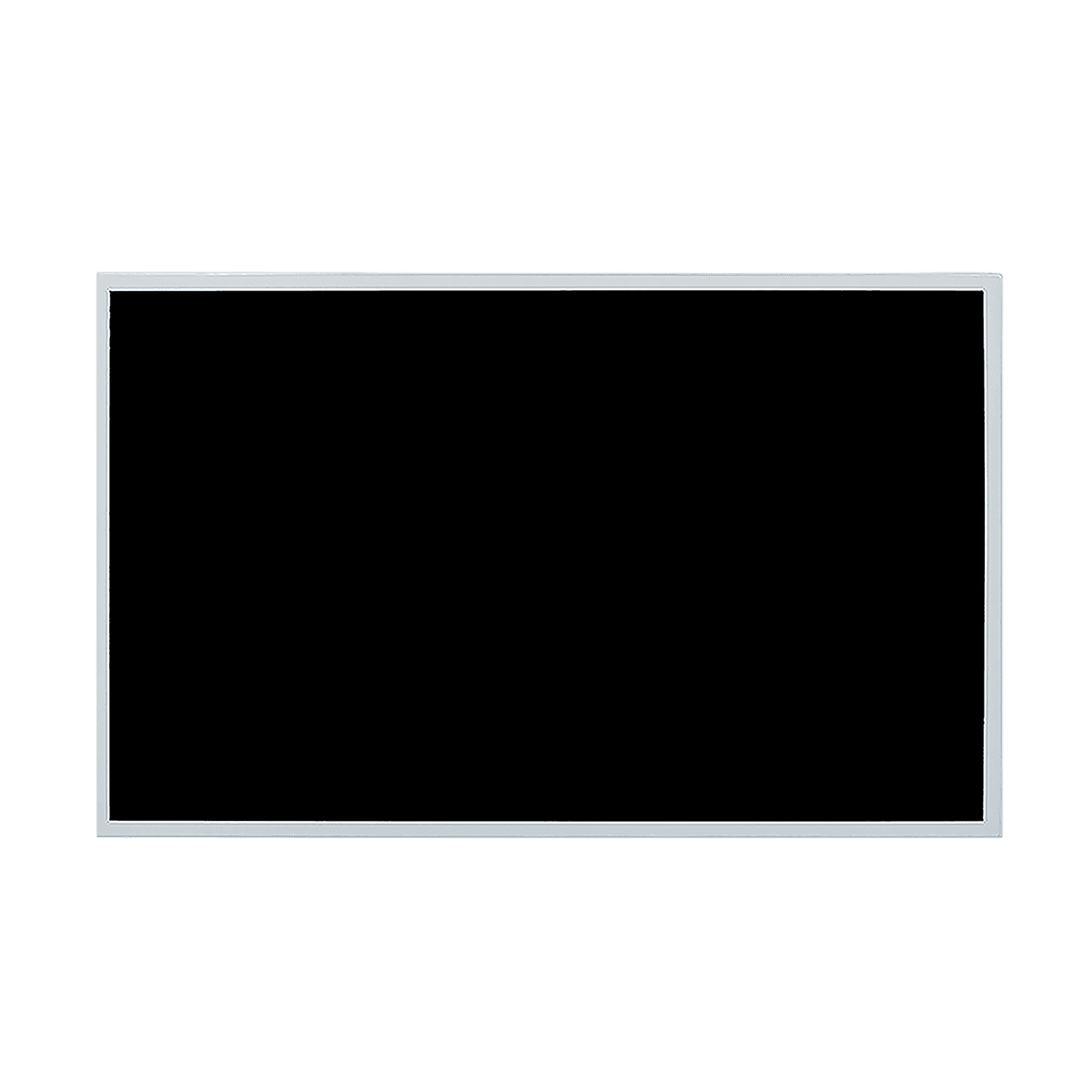

Boe MV185WHB-N20 18.5'' Lcd Panel LVDS Cable (40*CM) 1366*768 30 PİNS 8-BİT 250 CD/M²
In stock
Product Code: 000257Barcode (EAN): 8800000001067
$35.00
≈ ₺1.658,30
Fast shipping · corporate delivery
Original product · warranty
Corporate tech support · 0850 550 15 15
- Marka / Brands: BOE
- Model Adı / Model Name: MV185WHB-N20
- Panel Teknolojisi / Panel Technology: IPS
- Ekran Boyutu / Screen Size: 18.5"
- En-Boy Oranı / Aspect Ratio: 16:9
Product Description
Bring clarity to your projects with the Boe MV185WHB-N20 18.5-inch LCD Panel and LVDS Cable set. It offers a 1366x768 resolution, 30-pin connection, and 250 cd/m² brightness. Ideal for high compatibility and easy installation.
Specifications
Datasheet (PDF)| Marka / Brands | BOE |
|---|---|
| Model Adı / Model Name | MV185WHB-N20 |
| Panel Teknolojisi / Panel Technology | IPS |
| Ekran Boyutu / Screen Size | 18.5" |
| En-Boy Oranı / Aspect Ratio | 16:9 |
| Çözünürlük / Resolution | 1366×768 (WXGA) |
| Renk Derinliği / Color Depth | 16.7M, %72 NTSC |
| Sinyal Türü / Signal Type | LVDS |
| Konnektör Tipi / Connector Type | 30 pin, LVDS 1ch 8-bit |
| Parlaklık / Brightness | 220 cd/m² |
| Kontrast Oranı / Contrast Ratio | 1000:1 (Typ.) |
| Görüş Açısı / Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) Sol/Sağ/Yukarı/Aşağı |
| Dokunmatik / Touch | None |
| Aktif Alan / Active Area | 409.8×230.4 mm |
| Outline(mm) | 422.2×244.1×1.32 mm |
| Ağırlık / Weight | 327g (Typ.) |
| Çalışma Sıcaklığı / Operating Temperature | Çalışma: 0~50°C, Depolama: -20~60°C |
| Model | MV185WHB-N20 |
* Specifications are provided by the manufacturer and may vary by model. Contact us for detailed information.
