Auo

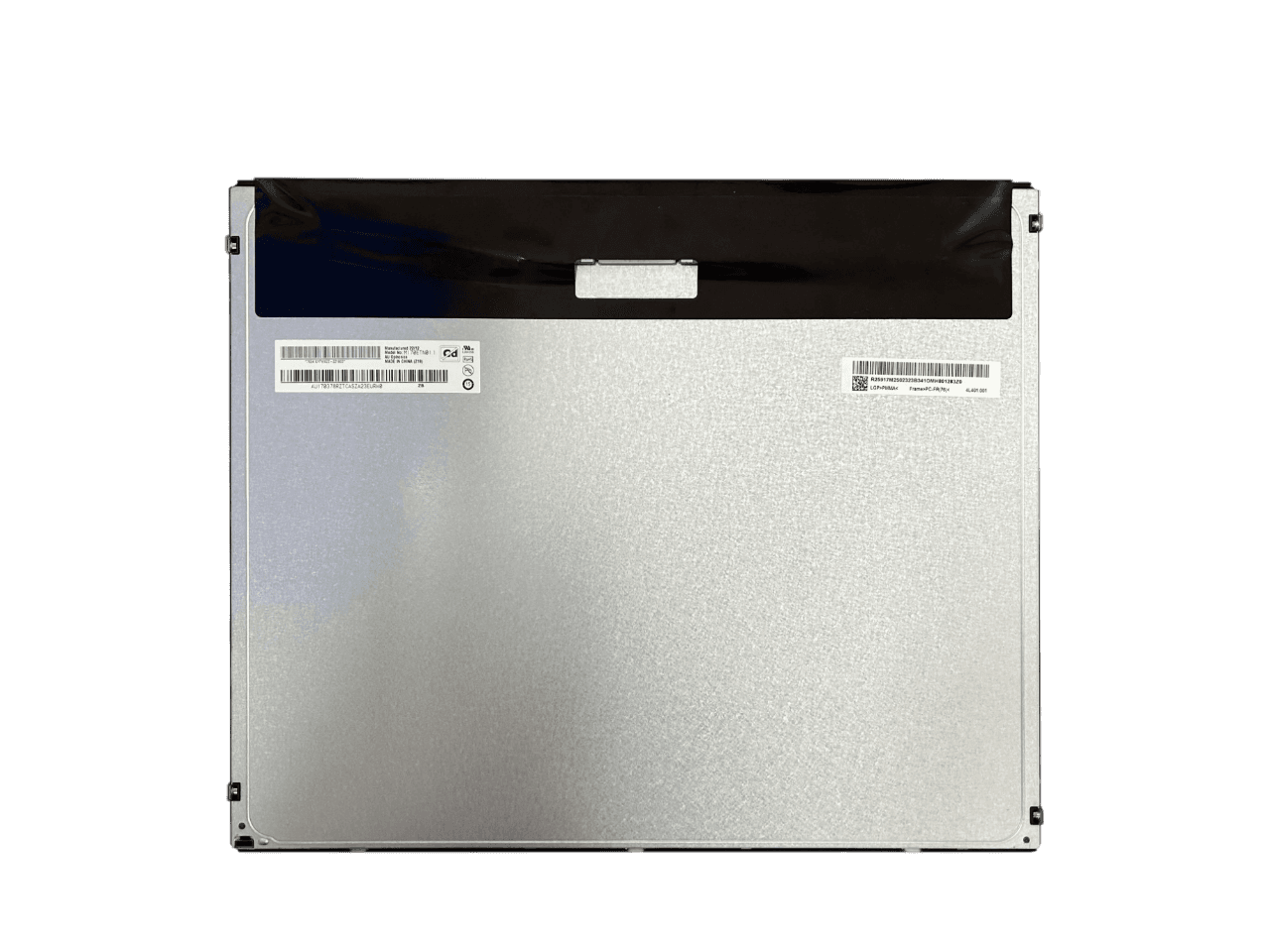

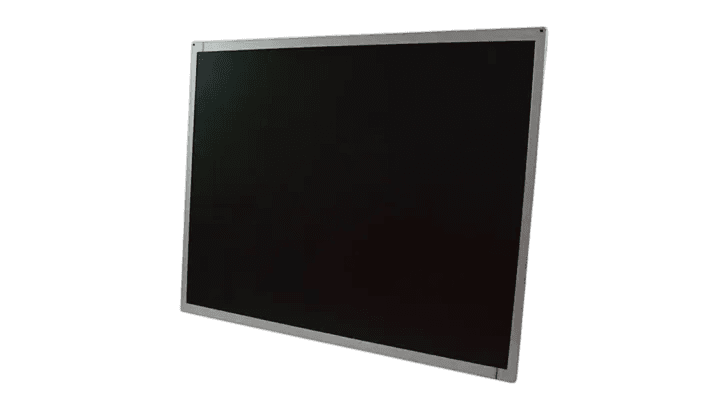

Auo M170ETN01.1 17'' Lcd Panel LVDS Cable (30*CM) 1280*1024 30 PİNS 8-BİT 250 CD/M²
Made to order
Product Code: 000332Barcode (EAN): 2000000003320
$40.00
≈ ₺1.895,20
Fast shipping · corporate delivery
Original product · warranty
Corporate tech support · 0850 550 15 15
- Marka / Brands: AUO
- Model Adı / Model Name: M170ETN01.1
- Panel Teknolojisi / Panel Technology: TN
- Ekran Boyutu / Screen Size: 17.0"
- En-Boy Oranı / Aspect Ratio: 5:4
Product Description
Auo M170ETN01.1 compatible 17-inch LCD panel and 30 cm LVDS cable kit. It offers 1280x1024 resolution, 30-pin 8-bit connection, and 250 cd/m² brightness. This is an ideal replacement part solution for your monitor or display projects.
Specifications
Datasheet (PDF)| Marka / Brands | AUO |
|---|---|
| Model Adı / Model Name | M170ETN01.1 |
| Panel Teknolojisi / Panel Technology | TN |
| Ekran Boyutu / Screen Size | 17.0" |
| En-Boy Oranı / Aspect Ratio | 5:4 |
| Çözünürlük / Resolution | 1280×1024 (SXGA) |
| Renk Derinliği / Color Depth | 16.7M, %72 NTSC |
| Sinyal Türü / Signal Type | LVDS |
| Konnektör Tipi / Connector Type | 30 pin, LVDS 2ch 8-bit |
| Parlaklık / Brightness | 250 cd/m² (Typ.) |
| Kontrast Oranı / Contrast Ratio | 1000:1 (Typ.) |
| Görüş Açısı / Viewing Angle | 85/85/80/80 (Typ.)(CR≥10) Sol/Sağ/Yukarı/Aşağı |
| Dokunmatik / Touch | None |
| Işık Kaynağı / Backlight | LED |
| Aktif Alan / Active Area | 337.92×270.336 mm |
| Outline(mm) | 358.5×296.5×10.8 mm |
| Ağırlık / Weight | 1.27 kg (Typ.) |
| Çalışma Sıcaklığı / Operating Temperature | Çalışma: 0~50°C, Depolama: -20~60°C |
| Model | M170ETN01.1 |
* Specifications are provided by the manufacturer and may vary by model. Contact us for detailed information.
