Boe

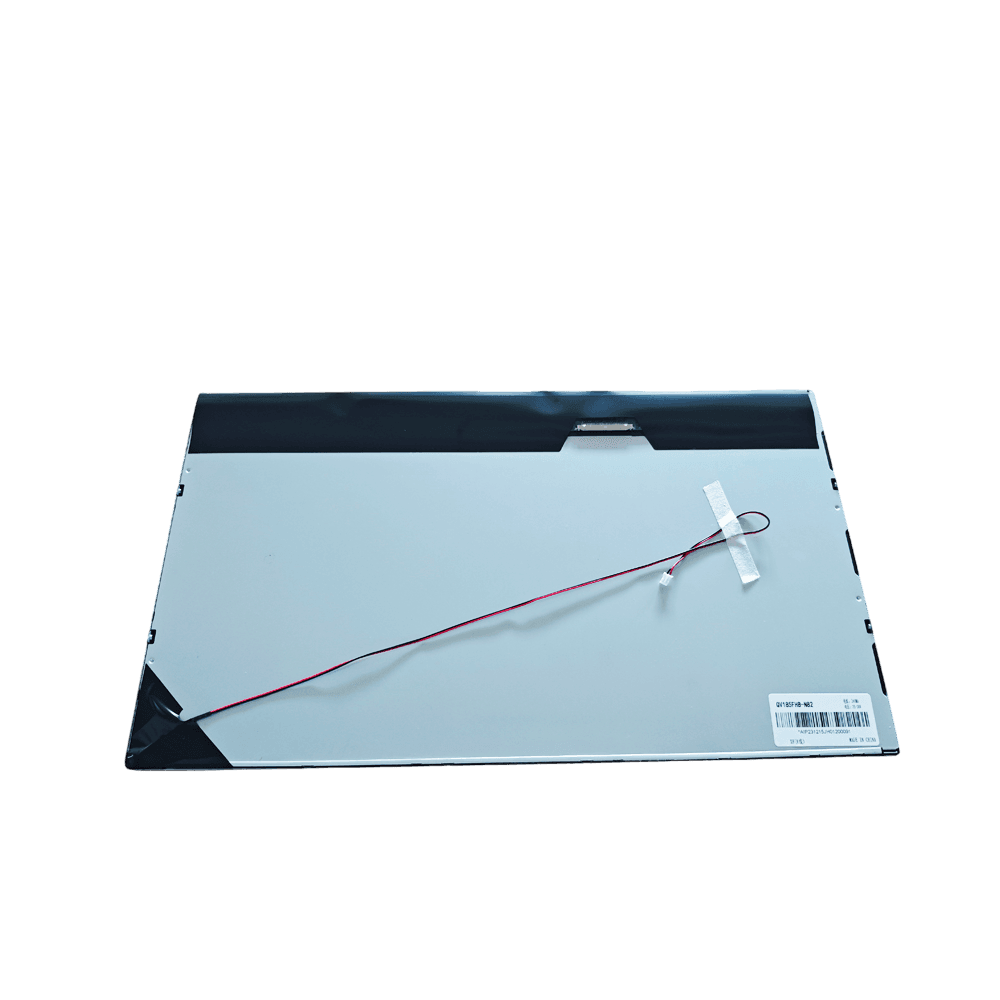

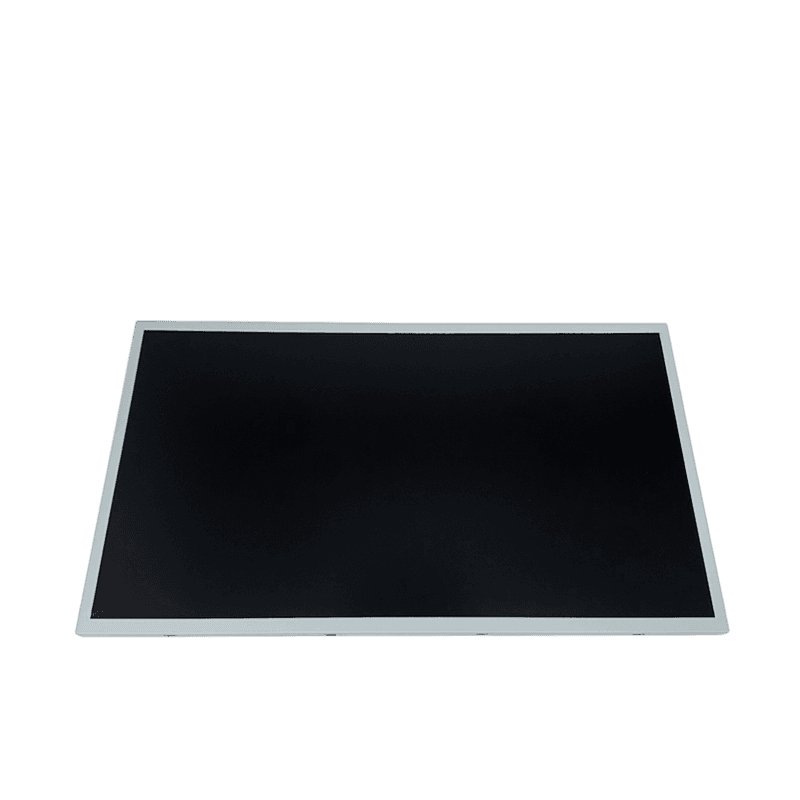

Boe QV185FHB-N82 18.5'' Lcd Panel LVDS Cable (40*CM) 1920*1080 FHD 30 PİNS 8-BİT 300 CD/M²
Made to order
Product Code: 002340Barcode (EAN): 2000000023403
$55.00
≈ ₺2.605,90
Fast shipping · corporate delivery
Original product · warranty
Corporate tech support · 0850 550 15 15
- Marka / Brands: BOE
- Model Adı / Model Name: QV185FHB-N82
- Panel Teknolojisi / Panel Technology: IPS
- Ekran Boyutu / Screen Size: 18.5"
- En-Boy Oranı / Aspect Ratio: 16:9
Product Description
This 30-pin LVDS cable is specifically designed for Boe 18.5-inch Full HD LCD panels, offering 1920x1080 resolution and 8-bit color depth. Its 40cm length ensures easy connectivity.
Specifications
Datasheet (PDF)| Marka / Brands | BOE |
|---|---|
| Model Adı / Model Name | QV185FHB-N82 |
| Panel Teknolojisi / Panel Technology | IPS |
| Ekran Boyutu / Screen Size | 18.5" |
| En-Boy Oranı / Aspect Ratio | 16:9 |
| Çözünürlük / Resolution | 1920×1080 (FHD) |
| Renk Derinliği / Color Depth | 16.7M, %72 NTSC |
| Sinyal Türü / Signal Type | LVDS |
| Konnektör Tipi / Connector Type | 30 pin, LVDS 2ch 8-bit |
| Parlaklık / Brightness | 300 cd/m² |
| Kontrast Oranı / Contrast Ratio | 1200:1 (Typ.) |
| Görüş Açısı / Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) Sol/Sağ/Yukarı/Aşağı |
| Dokunmatik / Touch | None |
| Aktif Alan / Active Area | 408.96×230.04 mm |
| Outline(mm) | 422.2×244.1×1.2 mm |
| Ağırlık / Weight | 330g (Typ.) |
| Çalışma Sıcaklığı / Operating Temperature | Çalışma: 0~50°C, Depolama: -20~60°C |
| Model | QV185FHB-N82 |
* Specifications are provided by the manufacturer and may vary by model. Contact us for detailed information.
